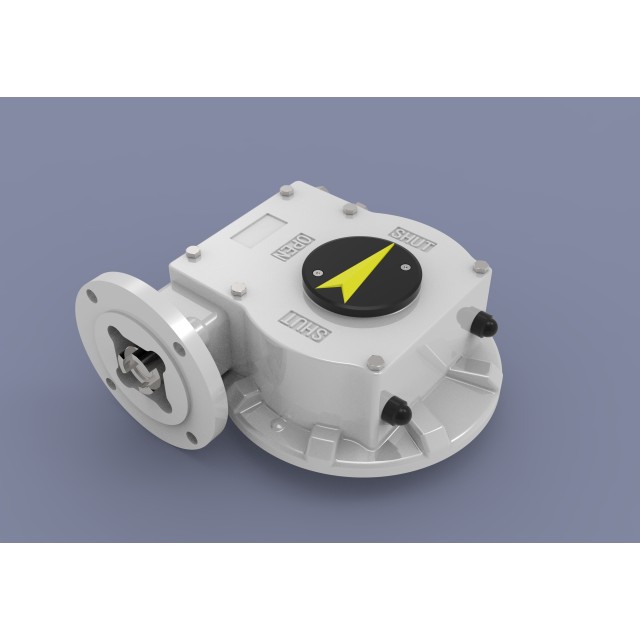

| WBS series motor data | ||||||||
| Type | Model | Ratio |
Maximum stem diameter |
Input torque nm |
Max output torque nm |
Configurable electric actuator |
Amplification factor ±10% |
Flange |
| A | WBS10-D | 29:1 | Φ20 | 40 | 350 | IQ10 | 9 | F05/F07 |
| A | WBS20-D | 37:1 | Φ28 | 47 | 520 | IQ12 | 11 | F07/F10 |
| A | WBS21-D | 38:1 | Φ36 | 75 | 850 | IQ18 | 11 | F10/F12/14 |
| A | WBS30-D | 40:1 | Φ45 | 113 | 1350 | IQ19/Z10 | 12 | F12/F14/F16 |
| A | WBS30-D | 48:1 | Φ45 | 94 | 1350 | IQ18/Z10 | 14 | F12/F14/F16 |
| A | WBS55-D | 47:1 | Φ50 | 142 | 2000 | IQ19/Z15 | 14 | F14/16 |
| A | WBS55-D | 56:1 | Φ50 | 119 | 2000 | IQ19/Z15 | 17 | F14/16 |
| A | WBS66-D | 55:1 | Φ55 | 152 | 2500 | IQ20/Z15 | 16 | F14/16 |
| A | WBS88D | 61:1 | Φ65 | 164 | 3000 | IQ20/Z15 | 18 | F16/F20/F25 |
| A | WBS99D | 69:1 | Φ70 | 169 | 3500 | IQ20/Z15 | 21 | F20/F25 |
| A | WBS88-D | 52:1 | Φ65 | 288 | 4500 | IQ25/Z30 | 16 | F16/F20/F25 |
| B | WBS88-SD | 122:1 | Φ65 | 123 | 4500 | IQ19/Z15 | 37 | F16/F20/F25 |
| B | WBS88-SD | 137:1 | Φ65 | 109 | 4500 | IQ18/Z10 | 41 | F16/F20/F25 |
| B | WBS88-SD | 169:1 | Φ65 | 89 | 4500 | IQ18/Z10 | 51 | F16/F20/F25 |
| A | WBS99-D | 58:1 | Φ70 | 287 | 5000 | IQ25/Z30 | 17 | F20/F25 |
| B | WBS99-SD | 136:1 | Φ70 | 123 | 5000 | IQ19/Z15 | 41 | F20/F25 |
| B | WBS99-SD | 153:1 | Φ70 | 109 | 5000 | IQ18/Z10 | 46 | F20/F25 |
| B | WBS99-SD | 188:1 | Φ70 | 89 | 5000 | IQ18/Z10 | 56 | F20/F25 |
| A | WBS195-D | 52:1 | Φ80 | 417 | 6500 | IQ35/Z45 | 16 | F16/F20/F25 |
| A | WBS195-D | 70:1 | Φ80 | 257 | 5400 | IQ25/Z30 | 21 | F16/F20/F25 |
| B | WBS195-SD | 122:1 | Φ80 | 190 | 6500 | IQ20/Z20 | 34 | F16/F20/F25 |
| B | WBS195-SD | 137:1 | Φ80 | 169 | 6500 | IQ20/Z20 | 38 | F16/F20/F25 |
| B | WBS195-SD | 156:1 | Φ80 | 149 | 6500 | IQ20/Z15 | 44 | F16/F20/F25 |
| B | WBS195-SD | 169:1 | Φ80 | 137 | 6500 | IQ20/Z15 | 47 | F16/F20/F25 |
| B | WBS195-SD | 182:1 | Φ80 | 128 | 6500 | IQ19/Z15 | 51 | F16/F20/F25 |
| B | WBS195-SD | 227:1 | Φ80 | 102 | 6500 | IQ18/Z10 | 64 | F16/F20/F25 |
| A | WBS295-D | 59:1 | Φ90 | 480 | 8500 | IQ35/Z45 | 18 | F25/F30 |
| A | WBS295-D | 80:1 | Φ90 | 271 | 6500 | IQ25/Z30 | 24 | F25/F30 |
| B | WBS295-SD | 153:1 | Φ90 | 198 | 8500 | IQ20/Z20 | 43 | F25/F30 |
| B | WBS295-SD | 208:1 | Φ90 | 112 | 6500 | IQ19/Z15 | 58 | F25/F30 |
| B | WBS295-SD | 236:1 | Φ90 | 129 | 8500 | IQ19/Z15 | 66 | F25/F30 |
| B | WBS295-SD | 295:1 | Φ90 | 103 | 8500 | IQ18/Z10 | 83 | F25/F30 |
| B | WBS295-SD | 320:1 | Φ90 | 73 | 6500 | IQ12 | 90 | F25/F30 |
| A | WBS300-D | 58:1 | Φ95 | 632 | 11000 | IQ35/Z60 | 17 | F25/F30 |
| B | WBS300-SD | 150:1 | Φ95 | 262 | 11000 | IQ25/Z30 | 42 | F25/F30 |
| B | WBS300-SD | 203:1 | Φ95 | 194 | 11000 | IQ25/Z20 | 57 | F25/F30 |
| C | WBS300-SD | 232:1 | Φ95 | 169 | 11000 | IQ25/Z20 | 65 | F25/F30 |
| C | WBS300-SD | 290:1 | Φ95 | 135 | 11000 | IQ19/Z15 | 81 | F25/F30 |
| C | WBS300-SD | 348:1 | Φ95 | 113 | 11000 | IQ19/Z15 | 97 | F25/F30 |
| C | WBS300-SD | 395:1 | Φ95 | 99 | 11000 | IQ18/Z10 | 111 | F25/F30 |
| C | WBS300-SD | 452:1 | Φ95 | 87 | 11000 | IQ18/Z10 | 127 | F25/F30 |
| C | WBS300-SD | 522:1 | Φ95 | 75 | 11000 | IQ12 | 146 | F25/F30 |
| A | WBS680-D | 62:1 | Φ110 | 806 | 15000 | IQ40/Z90 | 19 | F25/F30 |
| C | WBS680-SD | 150:1 | Φ110 | 357 | 15000 | IQ25/Z30 | 42 | F25/F30 |
| C | WBS680-SD | 196:1 | Φ110 | 273 | 15000 | IQ25/Z30 | 55 | F25/F30 |
| C | WBS680-SD | 260:1 | Φ110 | 206 | 15000 | IQ20/Z20 | 73 | F25/F30 |
| C | WBS680-SD | 350:1 | Φ110 | 153 | 15000 | IQ20/Z15 | 98 | F25/F30 |
| C | WBS680-SD | 372:1 | Φ110 | 144 | 15000 | IQ19/Z15 | 104 | F25/F30 |
| C | WBS680-SD | 483:1 | Φ110 | 111 | 15000 | IQ18/Z15 | 135 | F25/F30 |
| C | WBS680-SD | 519:1 | Φ110 | 103 | 15000 | IQ18/Z10 | 145 | F25/F30 |
| C | WBS680-SD | 558:1 | Φ110 | 96 | 15000 | IQ19 | 156 | F25/F30 |
| A | WBS780-D | 55:1 | Φ130 | 1424 | 23500 | IQ70/Z120 | 17 | F30/F35 |
| C | WBS780-SD | 187:1 | Φ130 | 449 | 23500 | IQ35/Z45 | 52 | F30/F35 |
| C | WBS780-SD | 288:1 | Φ130 | 291 | 23500 | IQ25/Z30 | 81 | F30/F35 |
| C | WBS780-SD | 422:1 | Φ130 | 199 | 23500 | IQ20/Z20 | 118 | F30/F35 |
| C | WBS780-SD | 495:1 | Φ130 | 170 | 23500 | IQ20/Z20 | 139 | F30/F35 |
| C | WBS780-SD | 555:1 | Φ130 | 151 | 23500 | IQ19/Z15 | 155 | F30/F35 |
| C | WBS780-SD | 627:1 | Φ130 | 134 | 23500 | IQ19/Z15 | 176 | F30/F35 |
| C | WBS780-SD | 703:1 | Φ130 | 119 | 23500 | IQ19/Z15 | 197 | F30/F35 |
| C | WBS780-SD | 794:1 | Φ130 | 106 | 23500 | IQ19 | 222 | F30/F35 |
| A | WBS980-D | 60:1 | Φ140 | 1667 | 30000 | IQ90/Z180 | 18 | F30/F35/F40 |
| C | WBS980-SD | 243:1 | Φ140 | 441 | 30000 | IQ35/Z45 | 68 | F30/F35/F40 |
| C | WBS980-SD | 354:1 | Φ140 | 303 | 30000 | IQ25/Z30 | 99 | F30/F35/F40 |
| C | WBS980-SD | 540:1 | Φ140 | 198 | 30000 | IQ20/Z20 | 151 | F30/F35/F40 |
| C | WBS980-SD | 720:1 | Φ140 | 149 | 30000 | IQ19/Z15 | 202 | F30/F35/F40 |
| C | WBS980-SD | 802:1 | Φ140 | 134 | 30000 | IQ19/Z15 | 225 | F30/F35/F40 |
| C | WBS980-SD | 957:1 | Φ140 | 112 | 30000 | IQ19 | 268 | F30/F35/F40 |
| A | WBS1080-D | 54:1 | Φ145 | 2222 | 36000 | IQ90/Z180 | 16 | F30/F35 |
| C | WBS1080-SD | 157:1 | Φ145 | 819 | 36000 | IQ40/Z90 | 44 | F30/F35 |
| C | WBS1080-SD | 218:1 | Φ145 | 590 | 36000 | IQ35/Z60 | 61 | F30/F35 |
| C | WBS1080-SD | 292:1 | Φ145 | 440 | 36000 | IQ35/Z45 | 82 | F30/F35 |
| C | WBS1080-SD | 437:1 | Φ145 | 294 | 36000 | IQ25/Z30 | 122 | F30/F35 |
| C | WBS1080-SD | 670:1 | Φ145 | 192 | 36000 | IQ20/Z20 | 188 | F30/F35 |
| C | WBS1080-SD | 856:1 | Φ145 | 150 | 36000 | IQ19/Z15 | 240 | F30/F35 |
| C | WBS1080-SD | 1110:1 | Φ145 | 116 | 36000 | IQ19 | 311 | F30/F35 |
| A | WBS1180-D | 57:1 | Φ180 | 3216 | 55000 | Z350 | 17 | F35/F40/F48 |
| C | WBS1180-SD | 248:1 | Φ180 | 792 | 55000 | IQ40/Z90 | 69 | F35/F40/F48 |
| C | WBS1180-SD | 295:1 | Φ180 | 605 | 50000 | IQ35/Z60 | 83 | F35/F40/F48 |
| C | WBS1180-SD | 838:1 | Φ180 | 234 | 55000 | IQ25/Z30 | 235 | F35/F40/F48 |
| C | WBS1180-SD | 1092:1 | Φ180 | 180 | 55000 | IQ20/Z20 | 306 | F35/F40/F48 |
| C | WBS1180-SD | 1280:1 | Φ180 | 153 | 55000 | IQ19/Z15 | 358 | F35/F40/F48 |
| C | WBS1180-SD | 1658:1 | Φ180 | 118 | 55000 | IQ19 | 464 | F35/F40/F48 |
| A | WBS1190-D | 63:1 | Φ200 | 3704 | 70000 | Z350 | 19 | F40/F48 |
| C | WBS1190-SD | 318:1 | Φ200 | 786 | 70000 | IQ40/Z90 | 89 | F40/F48 |
| C | WBS1190-SD | 959:1 | Φ200 | 261 | 70000 | IQ25/Z30 | 269 | F40/F48 |
| C | WBS1190-SD | 1261:1 | Φ200 | 198 | 70000 | IQ20/Z20 | 353 | F40/F48 |
| C | WBS1190-SD | 1572:1 | Φ200 | 159 | 70000 | IQ19/Z15 | 440 | F40/F48 |
| C | WBS1190-SD | 2228:1 | Φ200 | 112 | 70000 | IQ19 | 624 | F40/F48 |
| A | WBS1280-D | 52:1 | Φ210 | 6181 | 90000 | Z500 | 15 | F40/F48 |
| C | WBS1280-SD | 370:1 | Φ210 | 869 | 90000 | IQ40/Z90 | 104 | F40/F48 |
| C | WBS1280-SD | 837:1 | Φ210 | 384 | 90000 | IQ35/Z45 | 234 | F40/F48 |
| C | WBS1280-SD | 1074:1 | Φ210 | 299 | 90000 | IQ25/Z30 | 301 | F40/F48 |
| C | WBS1280-SD | 1602:1 | Φ210 | 201 | 90000 | IQ20/Z20 | 449 | F40/F48 |
| C | WBS1280-SD | 2104:1 | Φ210 | 153 | 90000 | IQ19/Z15 | 589 | F40/F48 |
| C | WBS1280-SD | 2769:1 | Φ210 | 116 | 90000 | IQ19 | 775 | F40/F48 |
| C | WBS1380PR54 | 337:1 | Φ260 | 1484 | 140000 | IQ90/Z180 | 94 | F48/F60 |
| C | WBS1380PR54 | 493:1 | Φ260 | 1014 | 140000 | IQ40/Z90 | 138 | F48/F60 |
| C | WBS1380PR54 | 1167:1 | Φ260 | 428 | 140000 | IQ35/Z45 | 327 | F48/F60 |
| C | WBS1380PR54 | 1671:1 | Φ260 | 299 | 140000 | IQ25/Z30 | 468 | F48/F60 |
| C | WBS1380PR54 | 2599:1 | Φ260 | 192 | 140000 | IQ20/Z20 | 728 | F48/F60 |
| C | WBS1380PR54 | 3278:1 | Φ260 | 153 | 140000 | IQ19/Z15 | 918 | F48/F60 |
| C | WBS1380PR54 | 3655:1 | Φ260 | 137 | 140000 | IQ19 | 1023 | F48/F60 |
| C | WBS1480PR67 | 定制 | Φ300 | / | 180000 | F60 | ||
| C | WBS1580PR106 | 定制 | Φ350 | / | 250000 | F60 | ||
| C | WBS1680PR142 | 定制 | Φ350 | / | 300000 | F60 | ||
| Note: Output torque = electric assembly torque X amplification factor | ||||||||
